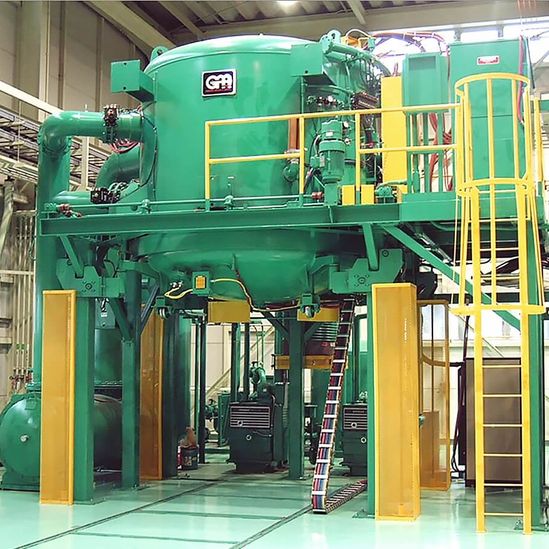

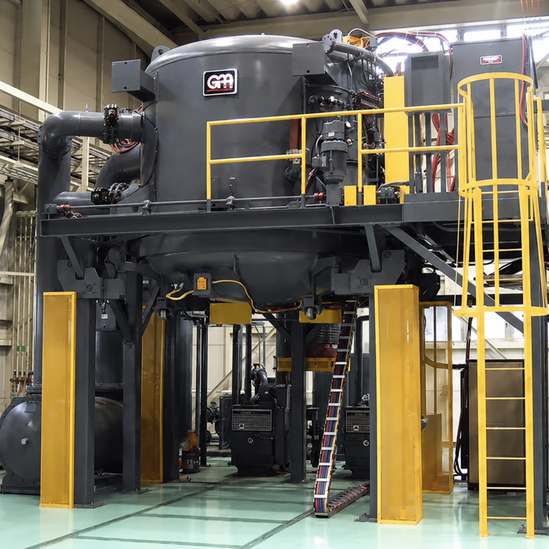

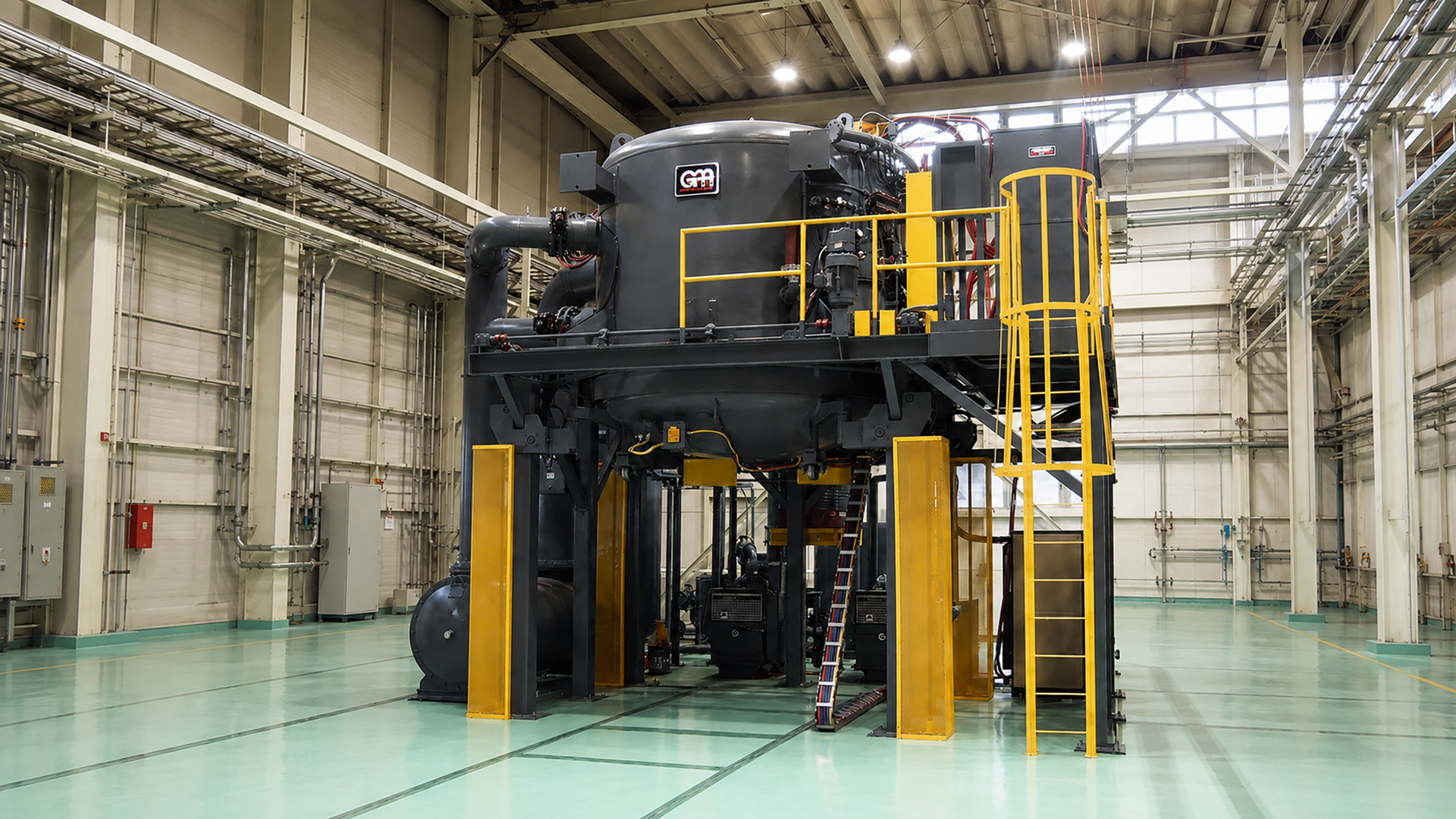

Vertical Bottom Vacuum Furnace
GM-Entreprises' vertical bottom-loading vacuum furnace is engineered for large workpieces, tall components, and high-stacked loads, delivering exceptional temperature uniformity and cooling performance.
Product details
- Perfect forLarge Workpieces, Tall Components, High-Stacked Loads & Heavy Cross-Section Parts
- Temperature RangeUp to 2,500°F (1,371°C)
- Working Pressure2–10 Bar Gas Quenching
- Construction OptionsAll-Metal or Graphite Hot Zone
- Available ConfigurationsBottom-Loading Design with Optional Bottom Cooling System
Designed for Large Components and High-Stacked Loads
The VVF Series is GM-Entreprises' bottom-loading vacuum furnace engineered for large workpieces, tall components, and demanding heat treatment applications. Its vertical design and advanced cooling technology provide exceptional temperature uniformity, process consistency, and load handling capability.
Key Features at a Glance:
Bottom-loading design optimized for large and tall workloads.
Available with all-metal or graphite hot zone construction.
Operating temperatures up to 2,500°F (1,371°C).
Working pressures from 2 to 10 bar gas quenching.
360° gas cooling nozzle system for uniform cooling performance.
Optional bottom cooling system for heavy cross-section components.
Key Benefits for Your Operation
Optimized for Large Loads
The vertical bottom-loading design easily accommodates large workpieces, tall components, and high-stacked loads.
Uniform Cooling Performance
A 360° gas cooling system promotes even gas distribution throughout the workload for consistent heat treatment results.
Improved Load Handling
Bottom-loading configuration simplifies the processing of oversized and complex components that are difficult to handle in traditional furnace designs.
Flexible Processing Capability
Supports a wide range of heat treatment applications while accommodating varying load sizes and geometries.
Reliable Long-Term Operation
Built with proven vacuum furnace technology and robust construction for dependable performance and maximum uptime.
Fusion Series Technical Data
The following table outlines available furnace sizes, load capacities, operating temperatures, and pressure configurations for the Fusion Series quick quench vacuum furnaces.
Reliable Support Throughout the Life of Your Equipment
From commissioning and training to maintenance, upgrades, and aftermarket support, GM-Entreprises delivers the expertise and services needed to keep your thermal processing systems operating at peak performance.
Connect With the GM-Entreprises Team
Whether you're exploring new technologies, planning a project, or looking for expert guidance, our team is ready to help you find the right solution for your operational goals.
